Continuous Temperature Mapping – Enhancing GxP Compliance

In this exclusive edition of xLM's ContinuousTV Weekly Newsletter, we are excited to present Continuous Temperature Mapping (cTM), our newest service tailored to transform temperature mapping within the MedTech, Biotech, and Pharma sectors. As experts in GxP validation, we recognize the vital significance of upholding regulatory standards while guaranteeing precise and dependable data. Through cTM, we amalgamate automation, data handling, and machine learning (ML) to enhance temperature mapping procedures, offering a smooth journey from data gathering to visualization. | Guide to Temperature Mapping for Pharmaceutical Storage (More) | WHO Technical Report (More).

1.0. Introduction

In the highly regulated MedTech, Biotech, and Pharma industries, maintaining precise temperature control is essential for ensuring product integrity. Traditional temperature mapping methods rely on manual data collection, which is time-consuming, error-prone, and inefficient for large-scale operations.

With Continuous Temperature Mapping (cTM), we introduce an AI-powered, automated solution that enhances GxP compliance, pharma temperature monitoring, and FDA validation. This cutting-edge technology integrates automation, data handling, and machine learning (ML) to provide real-time monitoring, predictive analytics, and validated dashboards for seamless regulatory adherence.

1.1. Why is Continuous Temperature Mapping (cTM) Essential for GxP Compliance?

Acknowledging these obstacles, we have introduced cTM to streamline the entire temperature mapping process, spanning from data collection to dashboard presentation. This automation not only improves accuracy and compliance but also significantly reduces the time and effort needed to oversee and analyze temperature data. cTM's service is especially valuable because the dashboards we offer are validated outputs that adhere to stringent industry regulations. They are crafted to be confidently utilized during FDA proceedings, guaranteeing precise data representation and compliance with regulatory mandates.

2.0. The Challenge of Temperature Mapping

2.1. Why Manual Temperature Mapping Fails GxP Compliance

Pharmaceutical and biotech companies have long relied on spreadsheets and manual processes to track temperature fluctuations. However, these outdated methods pose several challenges:

• High Risk of Human Error: Manual data entry increases inaccuracies, affecting compliance.
• Lack of Real-Time Monitoring: Delayed responses can lead to regulatory non-compliance.
• Regulatory Hurdles: Compliance with 21 CFR Part 11 and GxP validation requires rigorous data management.

To overcome these limitations, cTM automates data collection, visualization, and compliance tracking, ensuring accuracy and operational efficiency

3.0. How cTM Dashboards Improve Pharma Temperature Monitoring

The cTM service revolves around two primary dashboards: the Temporary Sensors Dashboard and the Fixed Sensors Dashboard. Each dashboard has a unique function, and when combined, they offer a holistic perspective on warehouse conditions.

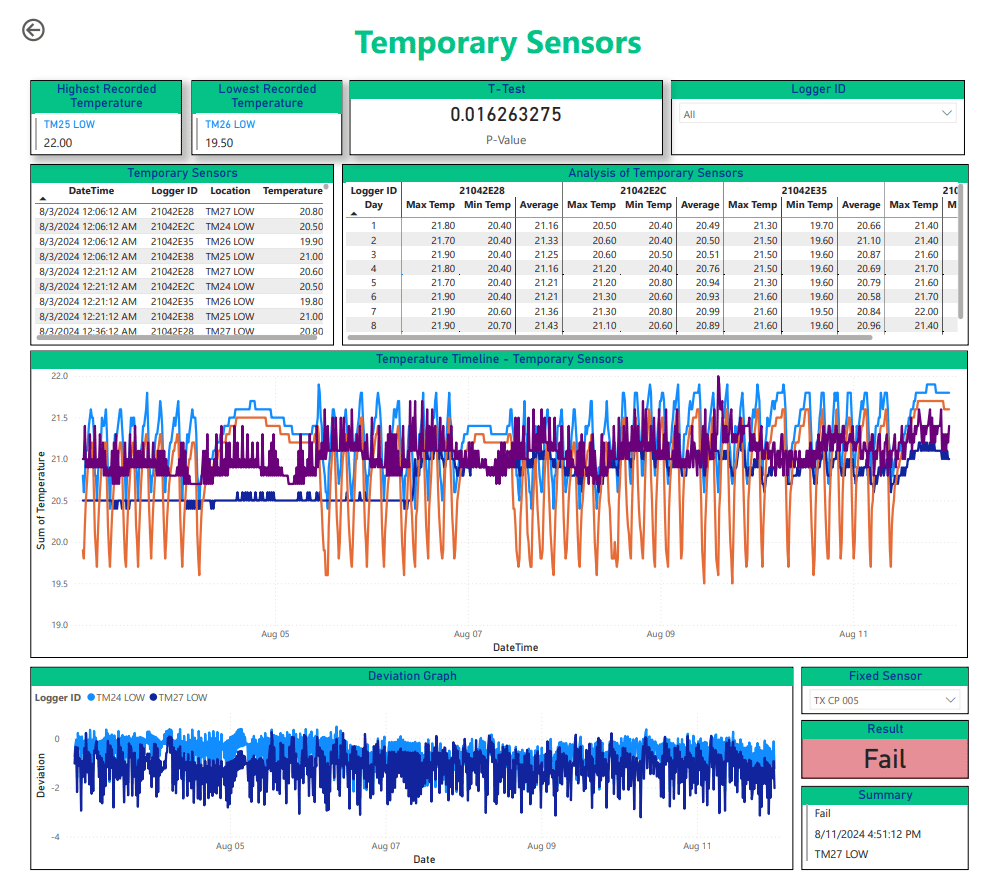

3.1. Temporary Sensors Dashboard

The Temporary Sensors Dashboard provides a comprehensive overview of environmental conditions within a warehouse using calibrated NFC and RF data loggers. These sensors are strategically placed to track temperature and humidity levels at designated intervals, ensuring that storage conditions remain within acceptable limits.

This dashboard is an essential tool for real-time monitoring, helping businesses maintain regulatory compliance and prevent product deterioration by identifying potential risks early. It features multiple key performance indicators (KPIs) designed to uphold operational efficiency and storage integrity.

3.1.1. Key Features of the Temporary Sensors Dashboard:

• Highest and Lowest Recorded Temperatures: Users can promptly identify the maximum and minimum temperatures recorded by any temporary sensor, along with the specific location of these readings. This feature is essential for verifying that all areas within the warehouse maintain temperature levels within the required range, thus averting potential product deterioration.
  ‍
• Detailed Data Table: The data table offers a detailed view of temperature readings, organized by date, time, logger ID, and location, and recorded temperature. This level of specificity enables precise monitoring and analysis of environmental conditions across the warehouse, facilitating the identification of particular areas or times when temperatures may have strayed from the norm.
  ‍
• Sensor Data Analysis: This segment provides day-wise summaries of the minimum, maximum, and average temperatures for all temporary sensors. Through analyzing these metrics, users can uncover patterns and trends that may signal systemic issues or areas necessitating additional monitoring.
  ‍
• Timeline Visualization: The visual representation of temperature data over time empowers users to observe trends and evaluate whether all readings fall within specified action and alert thresholds. This visual aid is especially beneficial for promptly detecting anomalies or periods of instability that may warrant further scrutiny.
• Deviation Graph: The deviation graph compares data from fixed and temporary sensors to ensure uniformity across various monitoring points. It flags any discrepancies exceeding 2°C lasting over two hours between fixed and temporary sensors, yielding a clear pass/fail outcome. This KPI is fundamental for validating sensor precision and guaranteeing that all sensors furnish dependable data meeting validation criteria.
  ‍
• Logger Comparison & Accuracy Testing: A T-test was conducted to evaluate the precision of fixed and temporary data loggers. The null hypothesis posited no notable distinction in temperature readings between the two types of loggers, whereas the alternative hypothesis suggested a variance in their measurements. Rejection of the null hypothesis occurs when the P-value is below 0.05, indicating that there is no disparity in the data obtained from temporary and fixed data loggers. This implies that the accuracy of temporary and fixed data loggers is equivalent.

By leveraging these features, businesses can maintain precise environmental control, reduce risks, and ensure that their warehouse operations align with industry regulations and best practices.

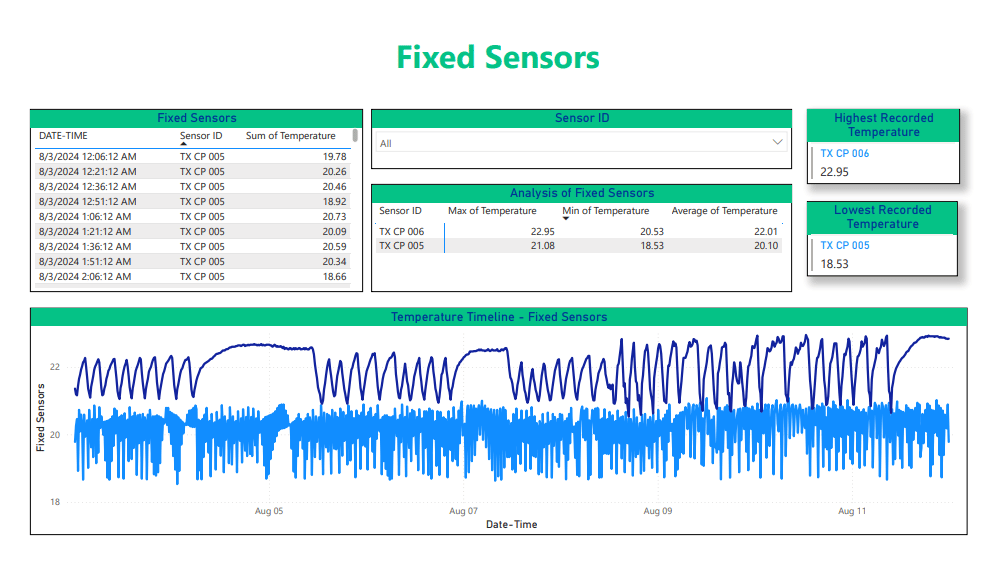

3.2. Fixed Sensors Dashboard

The Fixed Sensors Dashboard is dedicated to data collected from sensors that are permanently installed in the warehouse. While it shares similarities with the Temporary Sensors Dashboard, it is specifically designed to meet the distinct needs of fixed sensors.

3.2.1. Key Features of the Fixed Sensors Dashboard:

Each container or graph is designed to highlight key performance indicators (KPIs) essential for maintaining optimal storage conditions and operational efficiency:

• Highest and Lowest Recorded Temperatures: This feature, akin to the temporary sensor's dashboard, offers swift access to the maximum and minimum temperatures registered by each fixed sensor.
  ‍
• Data Summary: A comprehensive table presents all readings sorted by date, time and sensor ID, enabling users to have a clear snapshot of the environmental conditions tracked by fixed sensors.
  ‍
• Temperature Analysis: An elaborate breakdown of day-to-day temperature readings, displaying the minimum, maximum, and average values for each sensor. This analysis ensures the proper functioning of all fixed sensors and their coverage of the designated areas.
  ‍
• Timeline and Graphical Analysis: Visual aids aid in evaluating whether fixed sensors are effectively monitoring temperatures throughout the warehouse, pinpointing any deviations or anomalies that require attention.

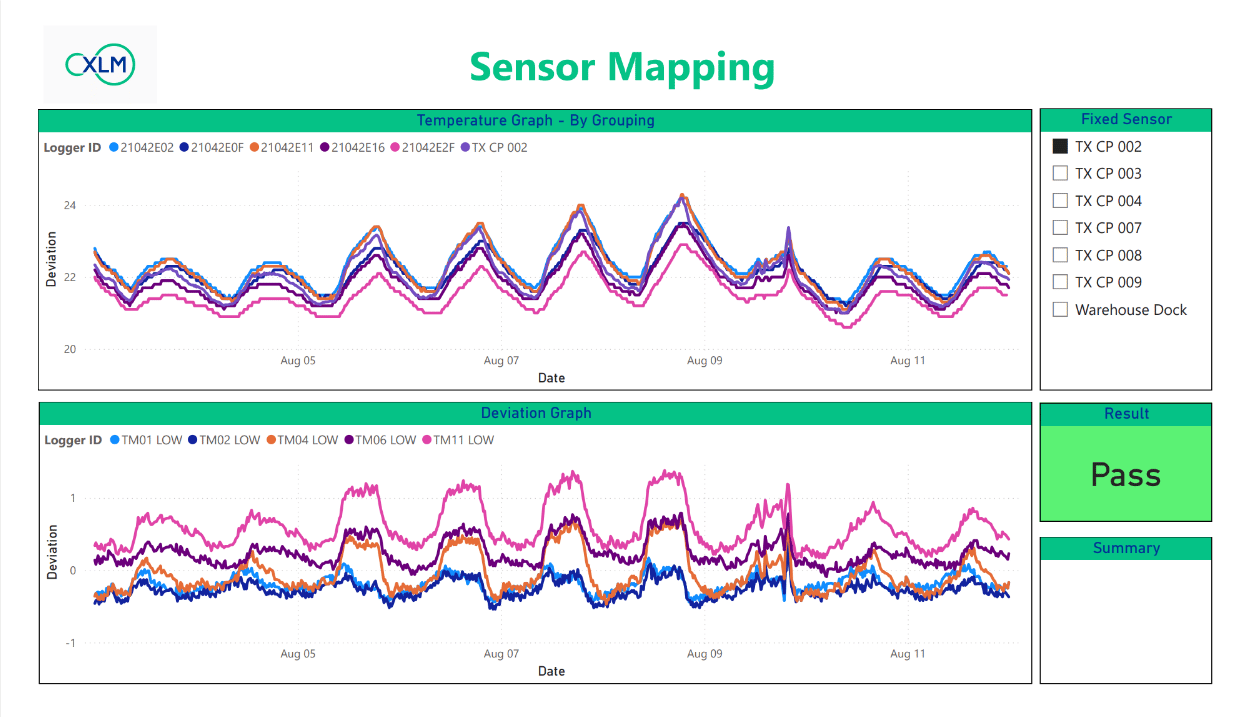

3.3. Sensor Mapping Dashboard

The Sensor Mapping Dashboard is tailored to compare data gathered from fixed and temporary sensors, offering a detailed analysis of environmental conditions in storage or warehouse areas. It incorporates proximity-based sensor grouping to improve data interpretation, guaranteeing accurate monitoring of temperature and humidity.

Every container or graph in the dashboard is crafted to address essential operational requirements:

3.3.1. Key Features of the Sensor Mapping Dashboard:

• Temperature Graph - By Grouping: This feature enables users to compare temperature discrepancies between fixed sensors and their corresponding temporary sensors. By selecting one or more fixed sensors, the dashboard automatically groups the nearest temporary sensors based on predefined proximity rules (For example 20 feet lateral, 5 feet vertical). This visual representation enhances monitoring efficiency, promptly identifying any differences between sensor groups.
  ‍
• Deviation Graph: This graph specifically focuses on the variations in data gathered from both sensor categories, offering a real-time insight into temperature or humidity inconsistencies. It empowers users to verify that all sensors, whether fixed or temporary, are functioning within acceptable parameters.
  ‍
• Data Automation: A backend data engine streamlines sensor grouping and data processing. Once a fixed sensor is chosen, all relevant temporary sensors are seamlessly linked, and their data is retrieved and correlated automatically. The platform ensures precise and dependable data analysis by updating the status as either Pass or Fail.
  ‍
• Result Status and Summary: The results panel delivers a concise overview of the system's overall health, employing a straightforward pass/fail system. In instances of sensor malfunctions, the Summary Tab records the precise time, sensor ID, and the nature of the issue, expediting the troubleshooting process.


4.0. The Power of Data Automation and Machine Learning

4.1. How Does AI Improve GxP Temperature Monitoring?

cTM specializes in automating and streamlining the temperature mapping process using advanced data labeling and machine learning techniques. Let's delve into how these technologies are leveraged to ensure data accuracy and compliance with regulations.

4.1.1. Data Labeling and Transformation:

One of the first steps in managing large-scale temperature data is data labeling and transformation. At cTM, we use Python-based automation to convert raw data into a standardized format, ensuring consistency across all fixed and temporary sensors.

Key Benefits:

• Automated Data Formatting: Eliminates errors and inconsistencies in temperature records.
• Standardized Data Structure: Allows for seamless integration into monitoring dashboards.
• Improved Accuracy: Ensures data is clean and ready for analysis.

By organizing and labeling the data correctly, businesses gain clear insights into warehouse conditions, making compliance and quality control more manageable.

4.1.2. Data Pre-processing:

Data pre-processing plays a crucial role in preparing data for machine learning models. It involves standardizing the data to ensure uniformity across all variables, a key factor for precise model training. In cTM, we utilize various normalization methods like min-max scaling and z-score normalization, tailored to the specific data requirements.

Furthermore, we implement feature engineering to derive insightful features from raw data. This process may involve generating lag features to capture time-related dependencies, breaking down time series data into trend and seasonality components, or conducting autocorrelation analysis to detect recurring patterns. These engineered features are then utilized to enhance the accuracy of our machine learning models in forecasting and analyzing temperature fluctuations within the warehouse.

4.1.3. Automation Using Machine Learning:

Machine learning plays a pivotal role in optimizing the analysis and reporting processes within cTM. By feeding our pre-processed data into predictive models, we can automate a variety of crucial tasks:

• Predictive Analytics: Machine learning models possess the ability to predict temperature trends and identify potential deviations in advance. This allows for proactive measures to uphold all areas within acceptable temperature ranges.
  ‍
• Anomaly Detection: Leveraging algorithms such as Isolation Forests and Local Outlier Factor, we can automatically identify anomalies in the data that could indicate sensor malfunctions or unexpected environmental changes. This approach ensures the accuracy of temperature mapping and facilitates swift resolution of any issues.
  ‍
• Automated Reporting: Upon completing data analysis, our system promptly generates detailed reports and dashboards. This eliminates the need for manual report generation and ensures stakeholders have continuous access to the most up-to-date information.

By integrating AI-powered automation, cTM ensures precision in temperature monitoring, enhances operational efficiency, and helps businesses maintain compliance effortlessly.

5.0. FDA Compliance and Validation

At cTM, we prioritize regulatory compliance by ensuring our temperature monitoring dashboards meet FDA standards for storage facility environments. Our system is designed to enhance data accuracy, validation, and operational efficiency while maintaining full compliance.

• Stringent FDA Compliance:
  • Aligns with FDA regulations for temperature monitoring and data integrity.
  • Ensures reliable and validated data collection for audits and inspections.
  • Supports adherence to Good Manufacturing Practices (GMP) & Good Distribution Practices (GDP).
    ‍
• Accuracy & Data Validation:
  • Every KPI and data visualization tool is calibrated for precision.
  • Real-time monitoring detects irregularities, ensuring continuous compliance.
  • Automated temperature trend analysis helps prevent violations and product degradation.
    ‍
• Operational Excellence & Continuous Improvement:
  • Provides a structured compliance framework for seamless regulatory adherence.
  • Enhances operational processes by identifying inefficiencies.
  • Supports ongoing improvements in storage and environmental management.

By integrating FDA-compliant monitoring with advanced data analytics, cTM not only ensures regulatory adherence but also helps businesses maintain product integrity while optimizing operations.

6.0. Best Practices for GxP-Compliant Temperature Monitoring

• Implement real-time temperature tracking using AI-powered dashboards.
• Automate data processing and compliance reporting.
• Utilize predictive analytics to proactively address potential risks.
• Conduct regular audits and sensor calibrations for validation.

7.0. Conclusion

cTM is transforming temperature mapping for the medical technology, biotechnology, and pharmaceutical industries. By leveraging advanced data labeling, transformation, and machine learning, we ensure regulatory compliance, operational efficiency, and unmatched environmental insights for warehouse facilities.

7.1. Key Benefits of cTM

• Regulatory Compliance: Fully aligned with FDA, GMP, and GDP standards.
• ‍Optimized Storage Conditions: Ensures products remain in ideal environments.
• ‍Enhanced Data Accuracy: Reduces errors through automated data processing.
• ‍Streamlined Operations: Automates end-to-end temperature mapping, from data logging to dashboard visualization.
• ‍Time & Cost Savings: Minimizes manual effort while improving efficiency.

By automating the entire temperature mapping process, cTM empowers businesses with real-time insights, precision monitoring, and seamless compliance management, ensuring product integrity, safety, and quality at all times.
